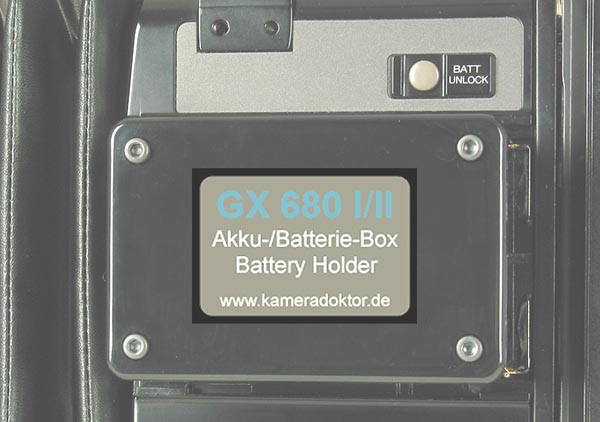

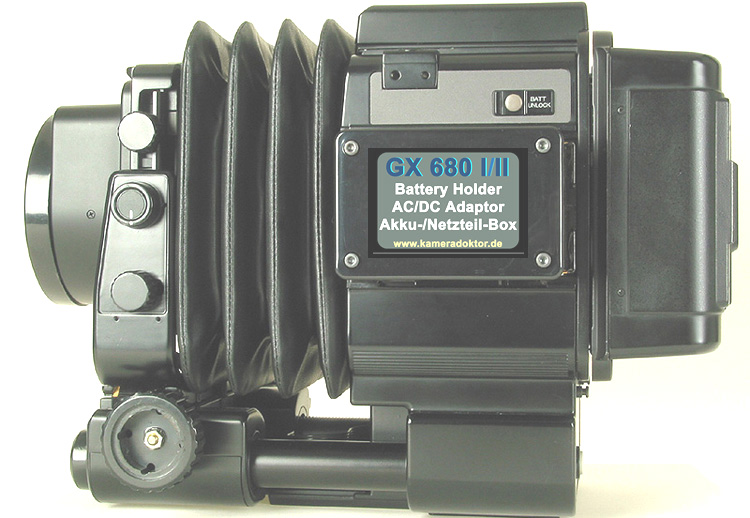

Custom made battery holder + AC/DC adapter for Fuji GX 680 I / II
----------------------------------------------------------------------------------------------------------------------
Inspite of a similar casing, this appliance differs remarkably
from those in ebay offered simple pieces of handicraft work.
There they have a thin flexible base-plate without the original recesses,
so, starting from the extreme left ( poor wide angle bellows! ),
with its full length the plate has to be pushed into the leading channels.
During the last 7mm the plate is squeezed over the camera's non-flexible electrical contacts,
which each time are digging themselves through the silver-plated contact-fields on the bottom,
unless there is no silver left to dig for (no contact too, of course, and no snap-in function).
--------------------------------------------------------------------------------------------------------------------------------------------------------------------
Here you get a professionally thought-out equipment system.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------

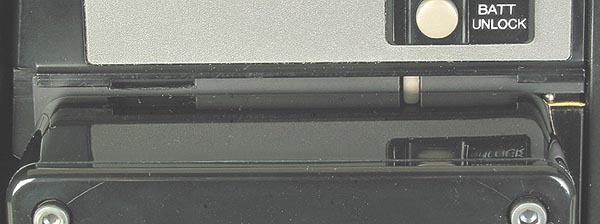

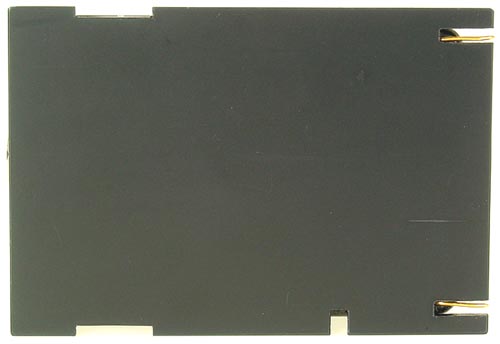

  Originally shaped base plate = original functions

  Set recesses into position...push 1 cm to the right...snap in

-----------------------------------------------------------------------------------------------------------

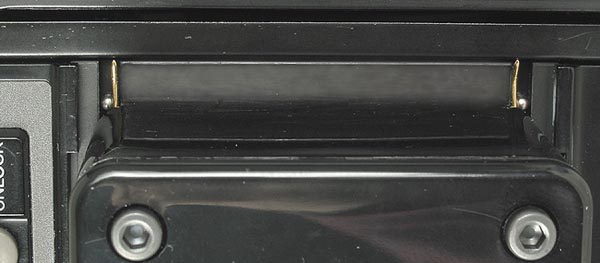

Flexible golden pins for durable electrical contact
(placed in the leading channels for the camera's un-flexible contacts)

-----------------------------------------------------------------------------------------------------------


You can take off the cap without tools and close the box with your fingertips.

( knurled handy screw-heads stand out 2mm )
-------------------------------------------------------------------------------------------------------------------

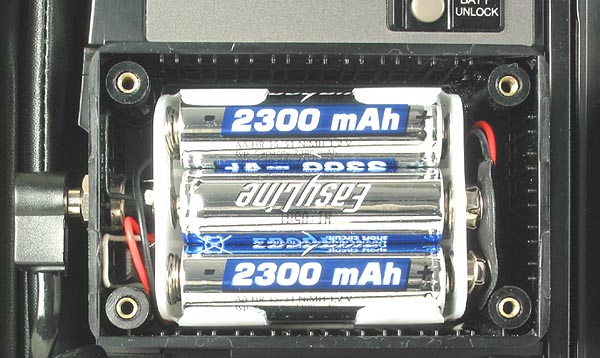

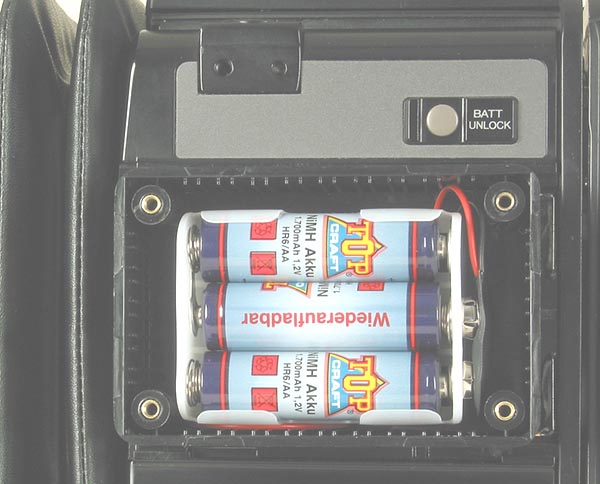

For recharging the cells, take them out separately
or clip off the whole "six-pack"

---------------------------------------------------------------------------------------------------------
In case of overseas offers take into account !
Original battery box (Taiwan) = 299 US $  what means for european customers
= (235 Euro) + 20€ customs + 45€ VAT + 20€ shipping + 30€ bank fees = 350€
---------------------------------------------------------------------------------------------------------

---------------------------------------------------------------------------------------------------------
Multi-Power-Kit
(7 components)
350 €

1.) Box
(with socket for AC/DC-Adaptor)

(DC-plug switches off the cells, so they may stay in the box while working with AC/DC-Power).
---------------------------------------------------------------------

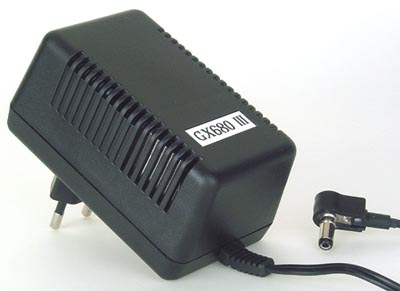

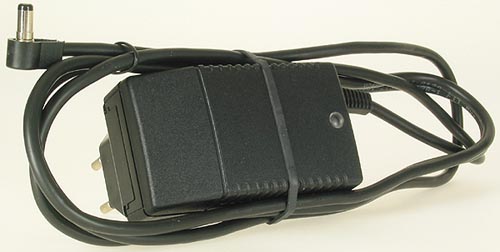

2.) AC/DC-Adaptor
(matched for GX 680 I + II)

Angle-plug and stiff cover let the cable hang close to battery holder, camera and tripod
without disturbing your handling
---------------------------------------------------------------------------

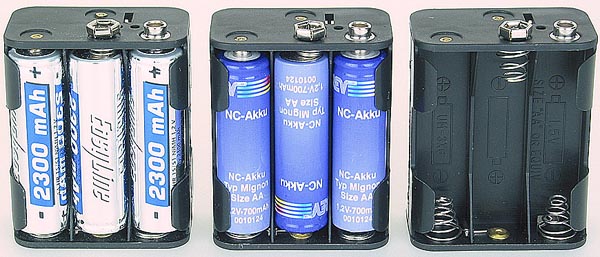

3.) Battery-basket
(six-pack filled with 6 fresh rechargeable NiMH-cells 1800mAh - charging time 13,5h)

4.) Battery-basket
(with 6 fresh NiCd-cells 700mAh - charging time 5 hours)
Keeping in mind the remarkable shorter charging time,  (parallel) work
with batteries of lower capacity is useful.
Fuji promised 1000 shots with the old original 700mAh-battery.
5.) Battery-basket (for reserve, no cells)
----------------------------------------------------------------------------------------

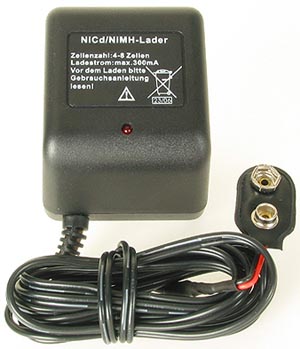

6.) Normal charger
(german top product matched for the mignon six-pack)
( NiCd or NiMH-cells 700-3000mAh )

Charge current is selfregulating referring to the number of cells,
a table shows the right charge time for each cell capacity.
------------------------------------------------------------------------------------------------------------------------------
Charging times: To give a run out six-pack full charge
  700 mAh = 4Std. 40Min.  /  1700 mAh = 11Std. 20Min.  /  2300 mAh = 15Std. 20Min.
------------------------------------------------------------------------------------------------------------------------------

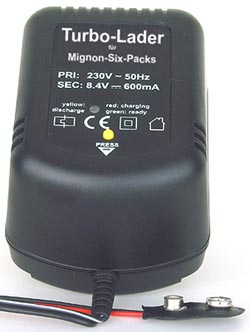

7.) TURBO-charger
(german top product matched for the mignon six-pack)

Charging times: To give a run out six-pack full charge
700 mAh = 1Std. 45Min.  /  1700 mAh = 4Std. 15Min.  /  2300 mAh = 5Std. 45Min.

LED shines YELLOW = Discharge (after pressing  yellow pin)
LED shines RED =  Turbo-charge, microprocessor controlled
LED shines GREEN = Charging complete .......... trickle charge
---------------------------------------------------------------------------------------------
Parallel use of a normal and a  turbo-charger is quite sensible:
If one has to work occasionally without AC-power-connection
he will use high capacity batteries and love the turbocharger.
After some fast charges a battery-pack needs a "formatting",
what means a very long + slow charge with a normal-charger.
A low or even faulty cell might "hide" among the good ones in
the pack and later be damaged by charging or discharging.
Only by regularly repeated "formatting" one can manage
to give each cell again the same charge level and prevent
the single cell and the whole pack from being damaged.
Best is, mainly to use the normal (slow) charger
and take the turbo only when one is really in a hurry.
----------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------



Fuji GX 680III * AC/DC-adapter  * AC/DC-adaptor * Fuji GX 680 lll
click
------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------
Please notice
I am not a dealer selling pre-fabricated industrial goods.
This is only an offer, to build for you (following your specifications)
a piece (system) of equipment.
---------------
Therefore I do not offer a 2-years-warranty (after EU-law),
but you get a six-month-guarantee (by normal use)
on mechanical + electrical functions of the appliance (system).
--------------------
Apart from that, all movable parts/contacts are selected + protected in a way
that you can expect them to work for years, as properly
as the electrical parts will do.
----------------------------------------------------------------------------------------------------------------------------
Viktor Hälke
www.kameradoktor.de
kameradoktor@aol.com
Nelkenweg 2
44869 Bochum
02327 - 77633
----------------------------------------------------------------------------------------------------------------------------
